产品规格

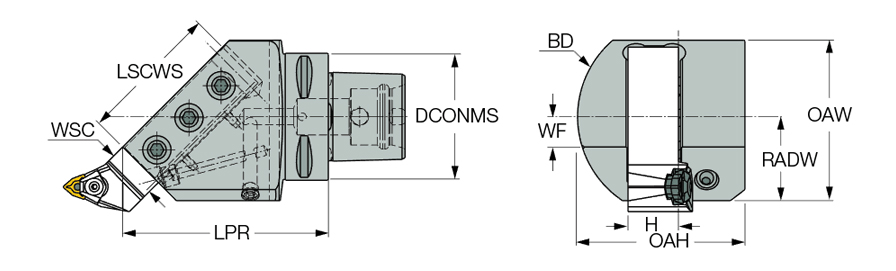

| Protruding Length (LPR) | 140 mm | 测量方式 | Metric |
| Connection Diameter Machine Side (DCONMS) | 80 mm | 刀体材质 | Steel |
| Clamping Length Workpiece Side (LSCWS) | 100 mm | Overall Height (OAH) | 110 mm |
| Shank Height (H) | 32 mm | Overall Length (OAL) | 188 mm |
| Body Diameter (BD) | 140 mm | 单位 | M |
| Shank Size (SS) | 80 | Overall Width (OAW) | 110 mm |
| Tool Type | ISO 26623-1 (CAMFIX, CAPTO) |
产品特性
| 系列描述 | CAMFIX(ISO 26623-1标准)快换刀柄， 45°斜置，夹持车铣床方车刀杆 | 系列名称 | C#-ASHR/L-45-ISC4509628 -M |
| COO | Italy | 品牌 | Iscar |
Shipping Info
包装重量
16.949
名字
Adapters
系列名称
C#-ASHR/L-45-ISC4509628 -M
品牌
Iscar
